MM Series 1200T

●High Frequency Response

●Low-speed with High-torque

●(P command) can promote the external linear scale encoder for Position command function
Model : MM

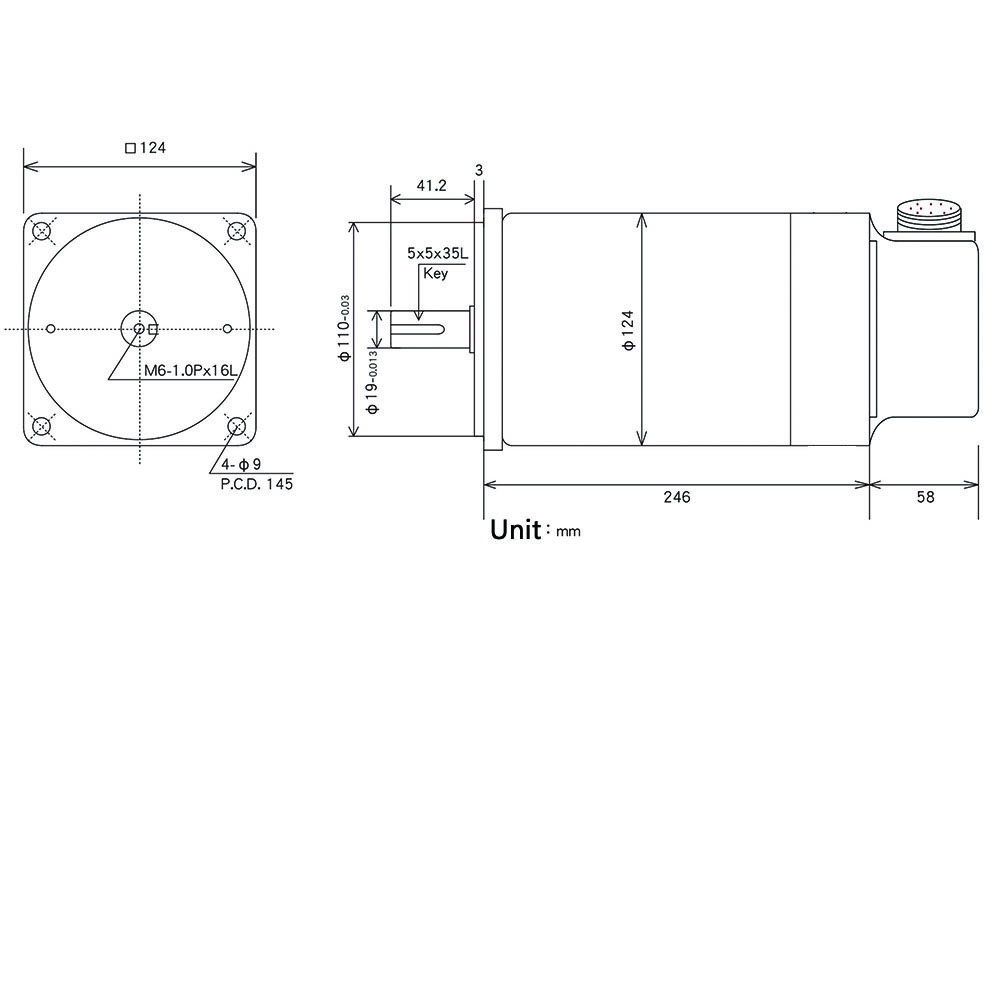

Motor Sizemm-1200t-size-en.jpg
Motor Data
Item/Parameter MM-1200T MM-1200T MM-1200T
Rated Speed(RPM) 1600/96VDC 2000/96VDC 2800/96VDC
TG Feedback(V/1000RPM) 5 5 5
Max.Voltage(V)
Max.speed(Within 20 mins.)(RPM)
Continuous Stall Torque(Nm) 10.5 8 6.8
Continuous Stall Current(Amps) 18 18 19.2
Max.Current(Amps) 67 67 67
Peak Stall Torque(Nm)
Armature Resistance Less Brushes(Ohms) 3.7 3.7 3.7
Max.Temperature(℃) 85.0 85.0 85.0
Motor Weight(Kgs) 13.5 13.5 13.5
Tachometer(TG) Data
Specification 5V/1000RPM
Tachometer(TG) Connection tg-of-600-1000t.jpg
