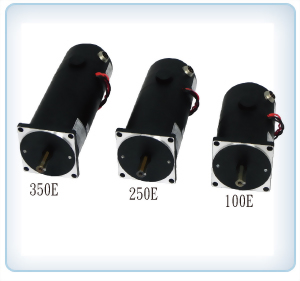

| Item/Parameter | MM-0100E | MM-0250E | MM-0350E | |
| Rated Speed(RPM) | 3200/48VDC | 3400/48VDC | 3400/48VDC | |
| Encoder Feedback(P/R) | 5000 | 5000 | 5000 | |
| Max.Voltage(V) | ||||
| Max.speed(Within 20 mins.)(RPM) | ||||
| Continuous Stall Torque(Nm) | 0.5 | 0.8 | 1.4 | |
| Continuous Stall Current(Amps) | 4.8 | 8.0 | 9.0 | |
| Max.Current(Amps) | 20.0 | 38.0 | 48.0 | |
| Peak Stall Torque(Nm) | 2.0 | 3.8 | 7.4 | |
|
6.0 | 2.7 | 2.7 | |
| Max.Temperature(℃) | 85.0 | 85.0 | 85.0 | |
| Motor Weight(Kgs) | 2.2 | 3.4 | 4.2 |
| Specification | Power : DC +5V ± 5% |
| Output Signal |
|
| Encoder Connection |
 |
